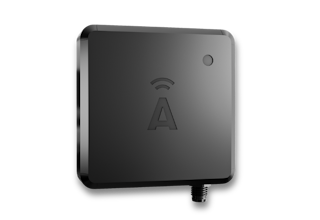

The ABAX Hub enables the Locations feature and powers solutions for Site Operations, for easy tracking of assets across large sites and complex operations.
It features a waterproof and rugged enclosure as well as a large backup battery if required. If you need further protection, simply add the special designed steel cage for peace of mind.
The ABAX Hub enables improved operating efficiency, asset recovery, and straightforward views of large numbers of assets.
A flexible solution for monitoring locations and sites
Waterproof IP67
Battery backup
Real time GPS location
72x72x18,5 mm
106 g
Operating temp: -20ºC to +60ºC
Battery capacity 3400mAh/12580 mWh
Updates immediately for newly detected assets with position and timestamp
Updates timestamps every 10 minutes when no asset movement is detected
When installing the ABAX Hub be sure to set it up in a fixed position at the location you want to monitor.
Use the 200 cm cable provided – use of a different cable will interfere with the warranty of this product.
| Installation type: | Wired installation |
| Typical equipment: | Any |
| Estimated installation time: | >5 minutes |
| Required tools: | None |
| Usage logging: | None |
| Vibration approvals: | Shock form: half sinus Peak acceleration: 500m/s² Shock duration: 6ms Number of shocks: ±10 (X,Y,Z) total =60 Test axes: 3 (±X, ±Y, ±Z) |
| Power supply: | 12V power adapter included |
Do not mount the unit under metal as it may interfere with GPS signal strength.
The cage is custom designed and we ensure it will not interfere with the signals sent from the device. The cage will also ensure the device is prepared for extreme conditions. The cage can be mounted with one way tampering screws that will make it difficult for potential thieves to remove.
Dimensions: 78,4 x 100,4 X 24.6 mm
Weight: 197 gr
3 mm stainless steel
Default tolerance: 0,3 mm
